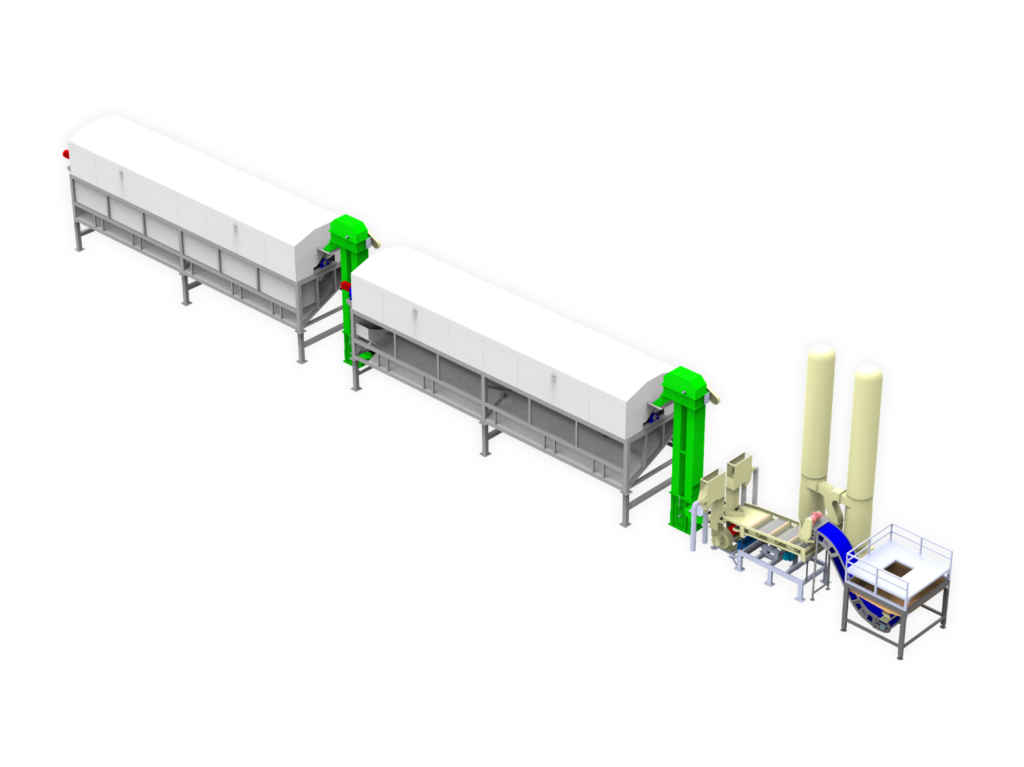

Raw Cashew Nut Calibration Machine | RCM9-S1

The RCM9-S1 automatically grades raw cashew nuts into nine size categories while removing stones, dust, and other impurities. Its precise screening system ensures consistent nut sizing and uniform feeding, helping improve the efficiency of downstream steaming and shelling processes.

Capacity

1800 - 2000 kg/hr

Power

15 kW (20 HP)

Dimensions

26 x 2 x 3.7 m

Grading Levels

9 Sizes

Request Quote Download Brochure

Key Features

9-Level Screening System
Integrated Cleaning
High Grading Accuracy (>95%)
Consistent Feeding
Smart PLC Control
Low Manpower Requirement

Technical Specifications

Capacity	1800 - 2000 kg/hr
Sorting Accuracy	>95%
Mesh Sizes	Ø18, Ø19, Ø20, Ø21, Ø22, Ø23, Ø24, Ø25, >Ø25
Material	MS & GI
Dimensions	26 x 2 x 3.7 m
Power Supply	3-Phase, 380V / 50Hz
Power Consumption	15 kW (20 HP)
Manpower	1 Operator
Grading Levels	9 Sizes
